Real Workshop Case
Batch CNC Machining of Multi-Cavity Aluminum Plates

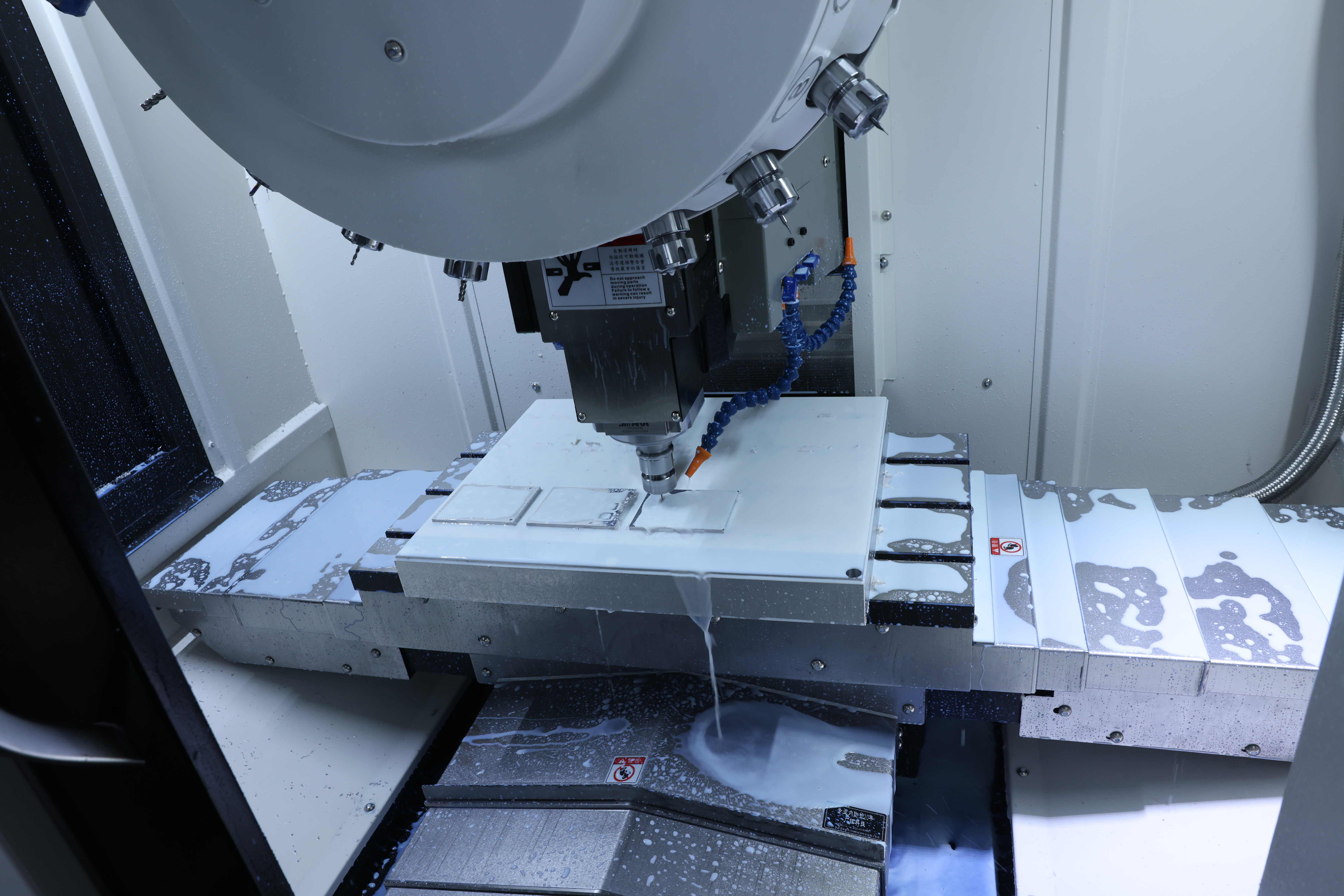

This real workshop case shows CNC milling and batch production preparation for repeated aluminum plate components with multiple cavity features. The project focus was not only to machine one sample, but also to maintain repeatable geometry, hole layout, and cavity features across multiple parts.
Part TypeMulti-cavity aluminum plate
ProcessCNC milling
MaterialAluminum alloy
QuantitySmall-batch / batch production
Surface ConditionAs-machined / project dependent
Application StageProduction validation / batch preparation
Project Background
The parts shown in this case are repeated aluminum plate components with multiple machined cavity features. For this type of project, CNC machining must consider both single-part geometry and batch consistency.
The project required repeated machining of similar plate structures, including cavity areas, hole positions, machined edges, and surface condition after machining. These details are important for engineering validation, pilot production, customer sample review, and batch manufacturing preparation.

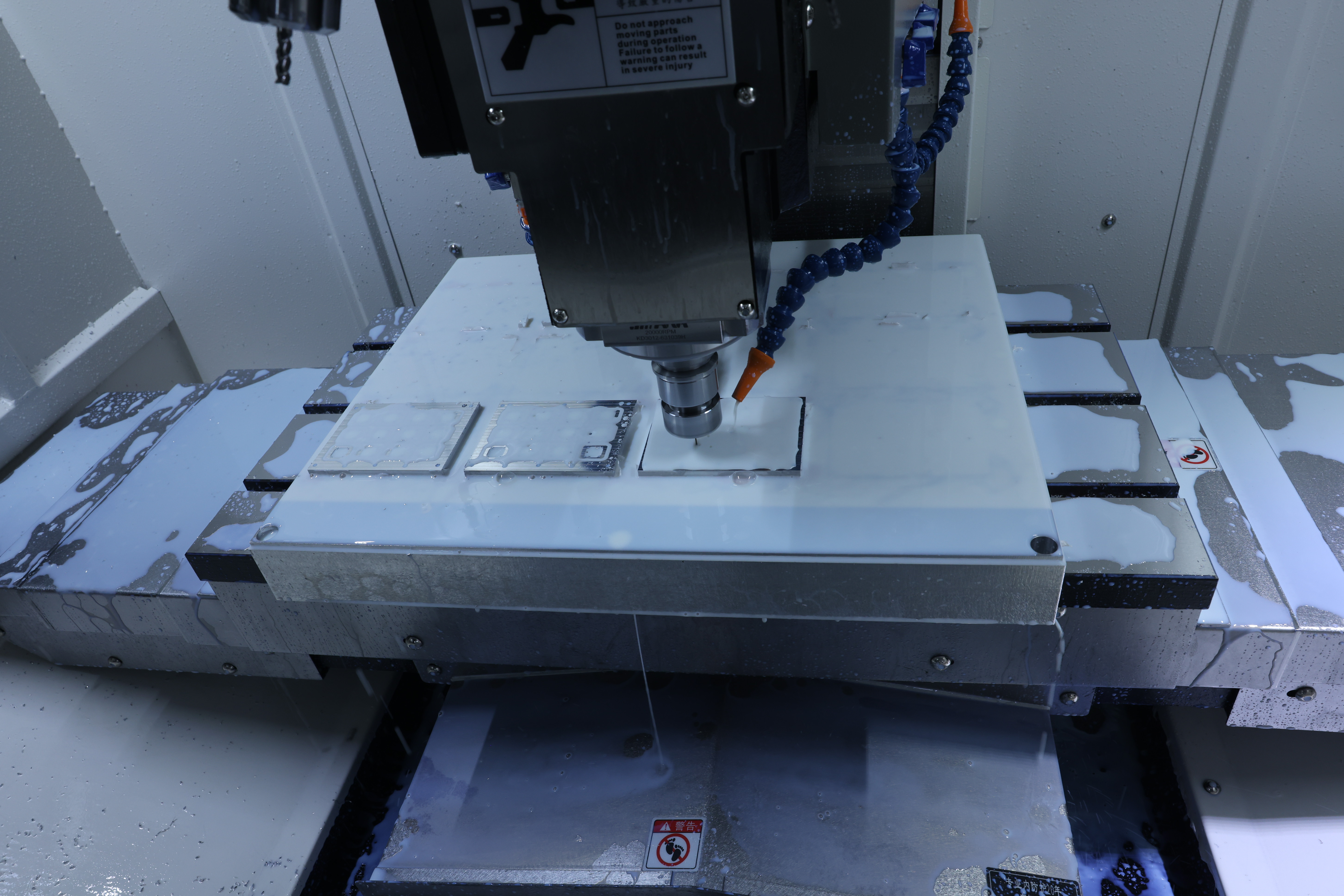

Main Machining Challenges
Multi-cavity plate parts require stable machining strategy because repeated pockets, holes, and edge features must remain consistent across multiple pieces.
- Multiple repeated cavity features on each plate
- Consistent hole positions and edge features
- Stable clamping during CNC milling
- Burr control around pockets and holes
- Batch-to-batch consistency during repeated machining
- Surface condition after machining and cleaning
EASEMFG Machining Approach
EASEMFG reviewed the part geometry and machining sequence before production. The machining approach focused on stable workholding, repeatable tool paths, cavity accuracy, and controlled finishing around pocket edges and hole features.
For batch machining projects, process repeatability is important. Parts can be reviewed according to critical dimensions, hole positions, cavity profiles, visible surfaces, and project-specific requirements before delivery or further surface treatment.
Production Review
The finished parts show repeated cavity features and consistent machining layout across multiple pieces. This type of project is suitable for engineering validation, pilot production, customer samples, and batch manufacturing preparation.
When submitting similar projects, it is helpful to provide CAD files, 2D drawings, material grade, quantity, surface finishing requirements, and the dimensions that should be treated as critical during inspection.
Note: This page is based on real workshop production photos from EASEMFG. It does not disclose customer identity, confidential design information, unsupported delivery claims, certification claims, or unconfirmed tolerance commitments.
