Complex Brackets
Multi-face brackets, lightweight support parts, aerospace-style structures, and angled mounting features.
5-Axis CNC Machining
5-Axis CNC Machining for Complex Multi-Side Parts
EASEMFG supports 5-axis CNC machining for complex surfaces, multi-side features, curved profiles, impeller-style parts, aerospace-style brackets, precision prototypes, and small-batch components that require reduced repositioning and controlled feature alignment.
5

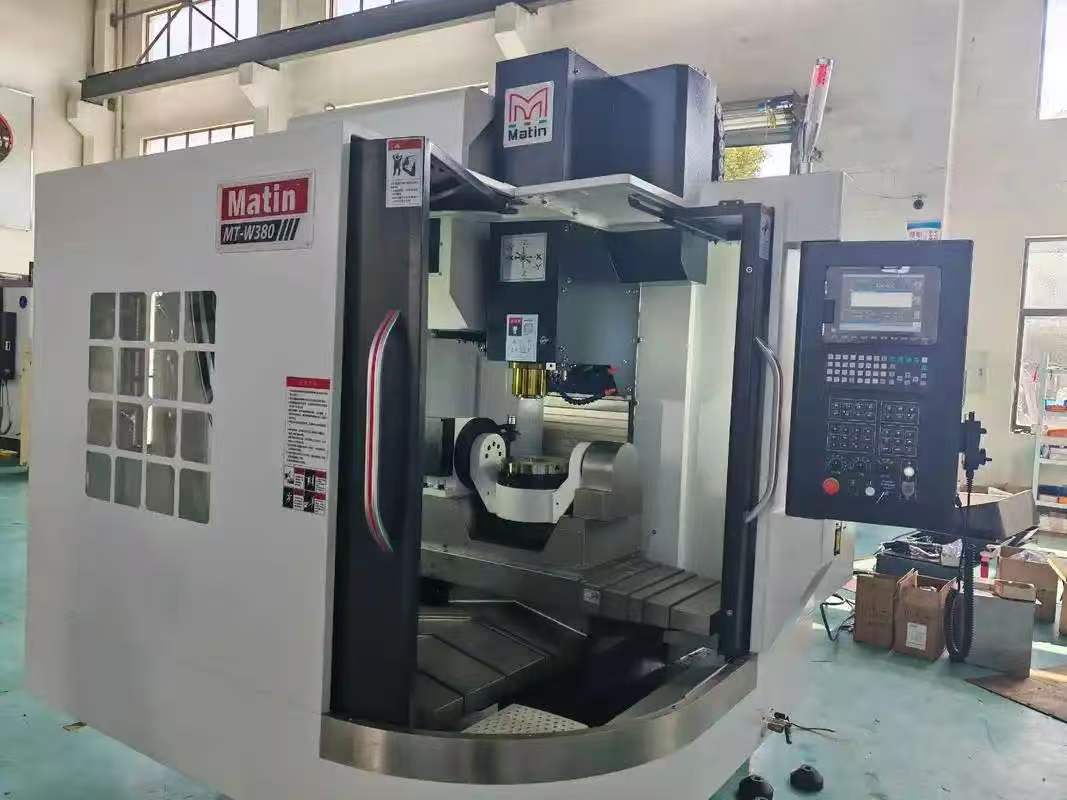

Five-axis machining centers for complex multi-side components.
+/- 0.05 mm
Critical tolerance control reference depending on geometry, material, and inspection method.
Multi-side
Suitable for parts requiring several angled surfaces or features in one setup strategy.
Low-volume
Supports prototypes, engineering samples, and small-batch production.
Why Choose 5-Axis CNC Machining?
Complex Geometry
Useful for curved surfaces, undercut access, deep cavities, impeller-style features, and multi-angle structures.
Fewer Setups
Reducing repeated fixture changes helps improve feature relationship and dimensional consistency.
Better Access
Tool orientation can be adjusted to reach features that are difficult to machine with standard 3-axis operations.
Engineering Samples
Suitable for prototype validation when the part has multiple critical faces or complex assembly interfaces.
Typical 5-Axis CNC Machined Parts
5-axis machining is selected when geometry, surface access, feature alignment, or setup reduction becomes important.
Impeller and Curved Parts
Parts with blades, curved surfaces, radial features, or difficult tool access requirements.
Precision Prototype Parts
Engineering samples used for fit checks, structure validation, and functional testing before production.
5-Axis Machining Project Review Focus
Before production, the drawing, CAD model, material, surface finish, tolerance, and inspection points should be reviewed together.
| Review Item | Why It Matters | Typical Check Points |
|---|---|---|
| Geometry and Tool Access | Complex surfaces and angled features require clear machining access. | Deep cavities, curved faces, undercuts, wall thickness, tool reach. |
| Material Selection | Material affects tool wear, deformation risk, surface finish, and cycle time. | Aluminum, stainless steel, titanium-like difficult materials, engineering plastics. |
| Critical Tolerances | Feature alignment and dimensional control need defined inspection points. | Datum surfaces, hole positions, mating faces, assembly interfaces. |
| Surface Finish | Curved surfaces and cosmetic faces may require finishing or toolpath optimization. | As-machined finish, polishing, blasting, anodizing, visible surface requirements. |
Note: 5-axis machining is not automatically required for every complex part. The best process should be selected after reviewing the drawing, CAD model, material, tolerance, surface finish, and quantity.
Need a 5-Axis CNC Machining Review?
Send your CAD file, drawing, material requirement, quantity range, critical tolerance notes, and surface finishing needs. EASEMFG can review whether 5-axis CNC machining is suitable for your part.
Request a Quote
